RE400 Rugged Tracking Device

Data Blocks
Data Blocks

RE400 Rugged Tracking Device

 Powering Insights Through a Dedicated AI-enabled Device

From yellow iron to heavy duty machinery, the RE400 rugged tracking device within TN360 offers the benefit of an AI-powered fleet management solution with the real-time data captured from your assets. Derive metrics key to your business direct from your equipment - the RE400 rugged tracking device is able to collect key data from sources such as GPS, GPIO, CAN bus, engine data, and more. The information is available instantly via tracking, insights and analytics where you can easily view current status, alerts and ask detailed questions or run customised reporting.

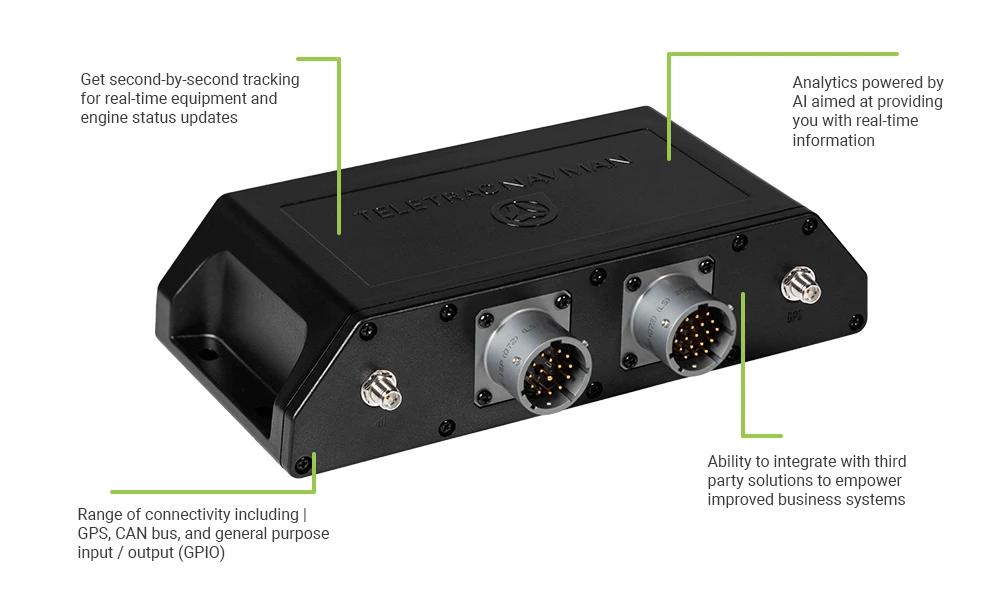

RE400 Diagram

RE400 Rugged Tracking Device Features and Benefits

Powering Insights Through Data Capture and AI

turning data into decisions

Turning Data into Decisions

The RE400 rugged tracking device captures key data from your operators and equipment, including engine hours, harsh usage metrics and maintenance information, and delivers it to TN360 that transforms this into insights for your business.

  • Get second-by-second tracking for real-time equipment and engine status updates

  • Capture safety events such as harsh acceleration, braking and cornering, via the accelerometer

  • Helps to keep track of asset maintenance

  • Driver gains a wide range of applications to make their job easier via an in-cab device

Powering Insights and analytics

Powering Insights

Together with the AI-powered TN360 platform, the RE400 rugged tracking device enables you to access business insights through easy to use analytics tools.

  • Question-based search which “learns” about your business and instantly answers your questions
  • Visualised analytics into key performance areas including productivity and safety
  • Customisable reporting for trip details, driver events, asset performance, maintenance, and alerts
delivers integrated applications

Integrated Apps

The data captured via the RE400 rugged tracking device also powers the TN360 driver application that keeps you connected with your workforce throughout the day. Your operator and engine data is all available in real-time.

  • Professionally installed across a range of your yellow iron and heavy duty machinery
  • Ability to integrate with third party solutions
  • Range of connectivity including GPS, CAN bus, and general purpose input / output (GPIO)

Technical Specifications

See why this device is right for you

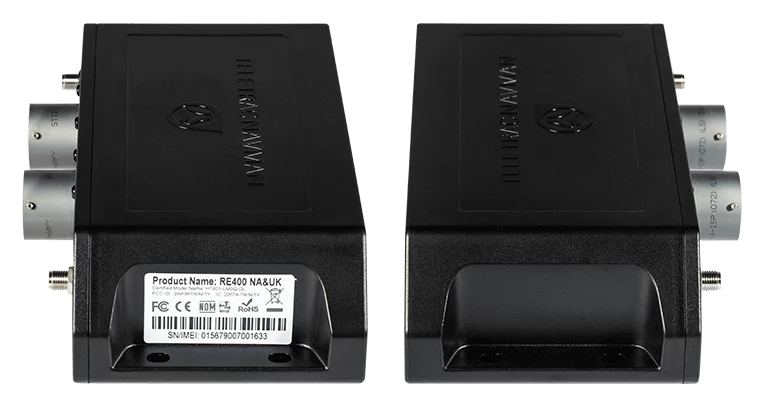

Re400 2

Tracking: Second by second data

Firmware Updates: Over the air

Installation: Professional 3-wire install through Teletrac Navman’s installation team

Certifications: NA: FCC Part 15 Class B, IC, NOM. UK/EU: CE, REACH, WEEE, ROHS. ANZ: RCM

Ratings: IP67

Re400 2

Size: 40mm high, 102mm wide, 182mm length

Weight: 495g

Re400 2

Connectivity: Internal 4G LTE Cat M1 modem


Battery: 6200mAh LiPo

Operating temperature: -20 to 60˚C

Record Storage: 16MB flash memory

Accelerometer: Yes, Gyro (6-Dof)

Antenna: Internal, external GNSS antenna optional

Input/Output: 4/3

LEDs: 5

OBDII Protocols: IOS 15765-4, J1939/J1708

Supply Voltage: 6VDC - 48VDC
